- MMIC Double Balanced RF Frequency Mixers feature industry leading conversion loss, isolations and spurious suppressions from 1 GHz up to 120 GHz.
- The T3 High Linearity RF Frequency Mixer is the most advanced mixer circuit in the world with broad, overlapping RF, LO and IF bands and extremely high linearity.
- Triple Balanced RF Frequency Mixers feature overlapping RF/LO and IF bands, higher linearity performance and greater spurious suppression.
- Integrated Drive RF Frequency Mixers combine the functions of our industry leading mixers with their ideal LO driver amplifier into an easy to use, compact package.
- Harmonic RF Frequency Mixers utilize a harmonic of the LO source for convenient frequency conversion in applications where a high frequency LO source may not be available.
- Legacy RF Frequency Mixers offer low conversion loss, high isolation, and low LO drive capability across incredibly broad bandwidths and are a sound choice for legacy systems and laboratory use.
Marki remains at the forefront of delivering RF and microwave mixers with exceptional features such as RF/LO frequency coverage up to 130 GHz, IF frequency coverage up to 50 GHz, superior spurious suppression, low conversion loss, and outstanding port-to-port isolation.
Click here to view subfamily information.
New
5 - 30 GHz
MM2-0530LBH
GaAs MMIC 5-30 GHz Triple Balanced Mixer
CL: 7.5 dB L-R Isolation: 42 dB
New

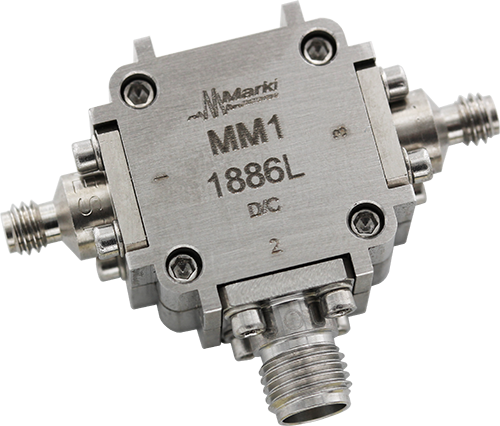

18 - 86 GHz
MM1-1886LM
GaAs MMIC mmWave Double Balanced Mixer
CL: 8.5 dB L-R Isolation: 50 dB
6 - 26.5 GHz
MM1-0626HS
GaAs MMIC Double Balanced Mixer
CL: 7.5 dB L-R Isolation: 47 dB
1.5 - 13 GHz

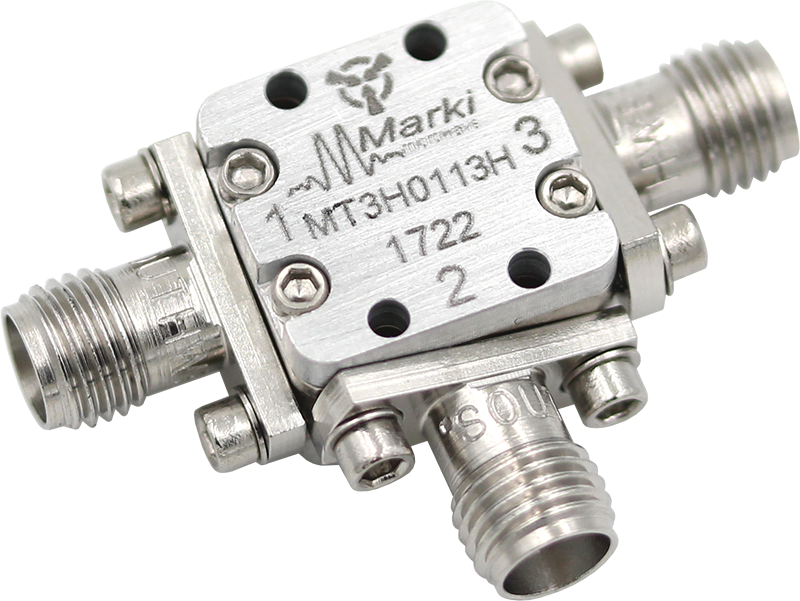

MT3H-0113HS
GaAs MMIC High Dynamic Range Mixer
CL: 8 dB L-R Isolation: 37 dB
4.5 - 24 GHz
MM1-0424SS
GaAs Double-Balanced Mixer
CL: 8 dB L-R Isolation: 49 dB
9 - 42 GHz
M9-0942LNV-2
Double-Balanced Mixers
CL: 9 dB L-R Isolation: 28 dB
2 - 20 GHz
MM2-0530HS
GaAs MMIC Triple Balanced Mixer
CL: 8 dB L-R Isolation: 40 dB
1 - 13 GHz

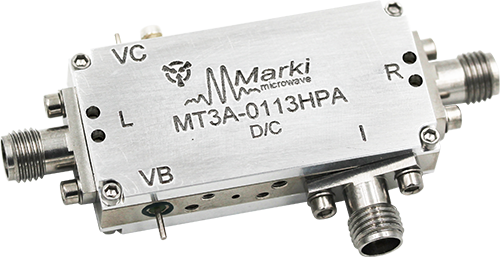

MT3A-0113HPA
Two-Tone-Terminator Mixer/LO-Amplifier
CL: 9.5 dB L-R Isolation: - dB
3 - 26.5 GHz
M8-0326MS
Double-Balanced 3 - 26.5 GHz Mixer
CL: 5.5 dB L-R Isolation: 35 dB
0.01 - 26.5 GHz
M2-0026LP
Triple-Balanced .01 - 26.5 GHz Mixer
CL: 8 dB L-R Isolation: 30 dB
4 - 12 GHz
M1-0412LP
Double-Balanced Mixers
CL: 5 dB L-R Isolation: 40 dB
25 - 67 GHz
MM1-2567LS
GaAs DOUBLE-BALANCED MIXER
CL: 9 dB L-R Isolation: 33 dB
4 - 44 GHz
M9-0444INV
Double-Balanced Mixers
CL: 7.5 dB L-R Isolation: 30 dB
1.5 - 13 GHz
MT3H-0113LS
GaAs MMIC High Dynamic Range Mixer
CL: 8 dB L-R Isolation: 43 dB
7 - 26.5 GHz

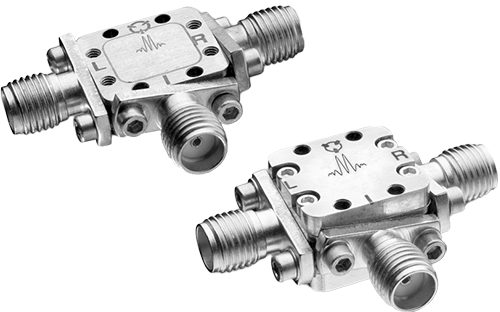

M1R-0726LS-1
Double-Balanced Mixers
CL: 6 dB L-R Isolation: 38 dB
2 - 26.5 GHz
M2-0226LP
Triple-Balanced Mixers
CL: 7.5 dB L-R Isolation: 28 dB
0.01 - 20 GHz
T3H-20GIS
Two-Tone-Terminator .01 - 20 GHz Mixer
CL: 9.5 dB L-R Isolation: 30 dB
0.01 - 20 GHz
T3H-20GLS
Two-Tone-Terminator .01 - 20 GHz Mixer
CL: 9.5 dB L-R Isolation: 30 dB
10 - 44 GHz

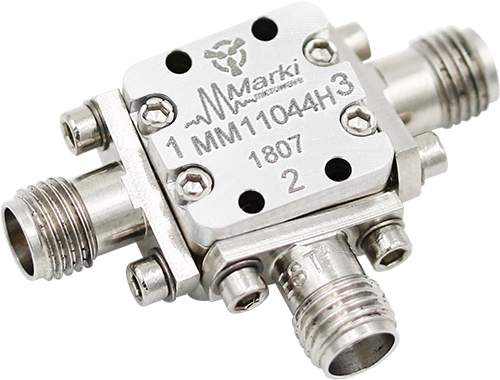

MM1-1044HS-KKS
GaAs MMIC Double Balanced Mixer
CL: 7.6 dB L-R Isolation: 47 dB
3.5 - 20 GHz
MM1-0320HS
GaAs DOUBLE-BALANCED MIXER
CL: 8 dB L-R Isolation: 52 dB
0.001 - 7 GHz
T3-07LQP
Two-Tone-Terminator Mixer
CL: 6.5 dB L-R Isolation: 32 dB
1 - 26.5 GHz
M4-0126LK
Double-Balanced 1 - 26.5 Mixer
CL: 8 dB L-R Isolation: 30 dB
0.01 - 18 GHz
T3H-18GLS
Two-Tone-Terminator .01 - 18 GHz Mixer
CL: 9.5 dB L-R Isolation: 30 dB
18 - 50 GHz
MM1-1850HS
GaAs DOUBLE-BALANCED MIXER
CL: 8 dB L-R Isolation: 43 dB
2 - 26.5 GHz
M2H-0226MP
Triple-Balanced Mixers
CL: 7.5 dB L-R Isolation: 28 dB

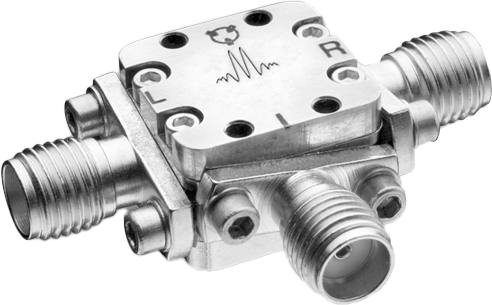

4 - 40 GHz
M2-0440LN
Triple-Balanced 4 - 40 GHz Mixer
CL: 10 dB L-R Isolation: 25 dB
7 - 26.5 GHz
M1R-0726MS
Double-Balanced Mixers
CL: 6 dB L-R Isolation: 38 dB
2 - 12 GHz
MM1-0212LS
Connectorized Module
CL: 8 dB L-R Isolation: 47 dB

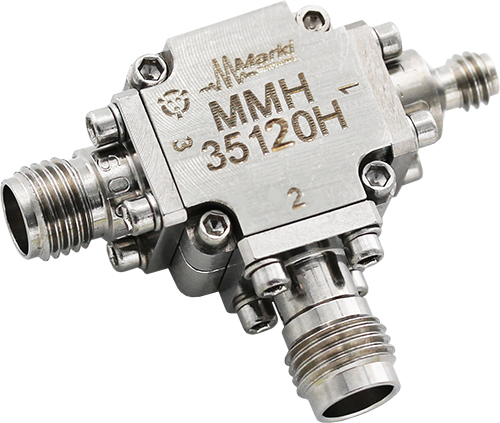

12 - 120 GHz
MMH-35120HM
GaAs MMIC Balanced mmWave Harmonic Mixer
CL: 15 dB L-R Isolation: 57 dB
2 - 40 GHz
M2-0240LP
Triple-Balanced 2 - 40 GHz Mixers
CL: 9 dB L-R Isolation: 30 dB
1 - 15 GHz
MM1-0115HS
GaAs MMIC Double Balanced Mixer
CL: 7.5 dB L-R Isolation: 51 dB
2 - 43 GHz
M2-0243LPV
Triple-Balanced Mixers
CL: 10 dB L-R Isolation: 30 dB
10 - 44 GHz
MM1-1044LS-KKS
Low Power GaAs MMIC Double Balanced Mixer
CL: 7.6 dB L-R Isolation: 47 dB
30 - 90 GHz
MM1-30100LM
GaAs MMIC Double Balanced mmWave Mixer
CL: 8.5 dB L-R Isolation: - dB
2 - 12 GHz
MM1-0212HS
GaAs MMIC Double Balanced Mixer
CL: 8.5 dB L-R Isolation: 47 dB
1 - 50 GHz
M4-0150LKVM-LF
Double-Balanced Mixers
CL: 9 dB L-R Isolation: 27 dB
7 - 26.5 GHz
M1R-0726MZ
Double-Balanced Mixers
CL: 6 dB L-R Isolation: 38 dB
18 - 57 GHz
MM1-1857HS
GaAs MMIC Double Balanced Mixer
CL: 7.5 dB L-R Isolation: 45 dB
4 - 20 GHz
M2-0440LNV
Triple-Balanced 4 - 40 GHz Mixer
CL: 10 dB L-R Isolation: 25 dB
35 - 130 GHz
MM1-35130HM
GaAs MMIC Double Balanced mmWave Mixer
CL: 8 dB L-R Isolation: - dB
18 - 57 GHz
MM1-1857LS
GaAs MMIC Double Balanced Mixer
CL: 8 dB L-R Isolation: 35 dB
10 - 40 GHz
T3-1040GLN
High-Linearity Triple-Balanced Mixers
CL: 8 dB L-R Isolation: 32 dB
10 - 44 GHz
MM1-1044LS
Low Power GaAs MMIC Double Balanced Mixer
CL: 7.6 dB L-R Isolation: 47 dB

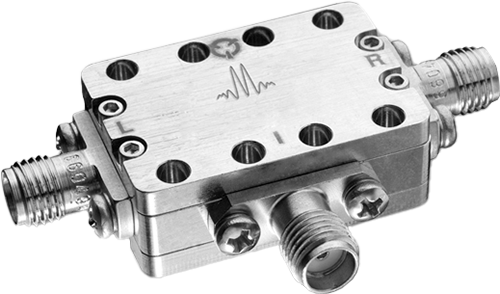

1 - 50 GHz
M4-0150LKV
Double-Balanced Mixers
CL: 9 dB L-R Isolation: 27 dB

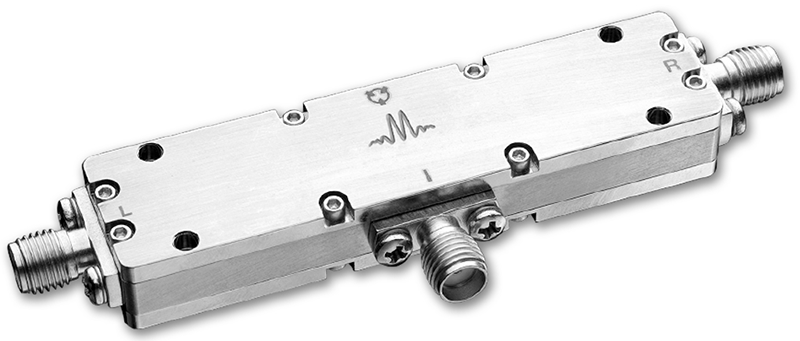

0.5 - 40 GHz
M4-0040LJ
Double-Balanced 0.5 - 40 Mixer
CL: 7 dB L-R Isolation: 30 dB
1 - 40 GHz
M4-0140LKV
Double-Balanced 1 - 40 GHz Mixers
CL: 9.5 dB L-R Isolation: 30 dB
3 - 12 GHz
MM1-0312SS
GaAs MMIC Double Balanced Mixer
CL: 7.5 dB L-R Isolation: 47 dB
0.01 - 12 GHz
T3-12MQP
TWO-TONE-TERMINATOR MIXER
CL: 7.5 dB L-R Isolation: 30 dB
10 - 18 GHz
T3-18GLS
TWO-TONE-TERMINATOR MIXER
CL: 8 dB L-R Isolation: 25 dB
0.1 - 12 GHz
T3-12LQP
Two-Tone-Terminator Mixer
CL: 7.5 dB L-R Isolation: 30 dB
8 - 32 GHz
MM1-0832LS
GaAs MMIC Double Balanced Mixer
CL: 8 dB L-R Isolation: 46 dB
8 - 32 GHz
MM1-0832HS
GaAs MMIC Double Balanced Mixer
CL: 7.6 dB L-R Isolation: 50 dB
14 - 67 GHz
MM1-1467LUB
GaAs MMIC High Dynamic Range Mixer
CL: 7 dB L-R Isolation: 53 dB
3 - 20 GHz
MM1-0320LS
GaAs MMIC Double Balanced Mixer
CL: 8 dB L-R Isolation: 54 dB
2 - 50 GHz
M2-0250LNVT
Triple-Balanced Mixers
CL: 10 dB L-R Isolation: 25 dB
2 - 20 GHz
MM2-0530LS
GaAs MMIC Triple Balanced Mixer
CL: 9 dB L-R Isolation: 44 dB
0.001 - 7 GHz
T3-07MQP
Two-Tone-Terminator Mixer
CL: 6.5 dB L-R Isolation: 32 dB
3 - 12 GHz
MM1-0312HS
GaAs MMIC Double Balanced Mixer
CL: 7.5 dB L-R Isolation: 47 dB
2 - 22 GHz
MM1-0222LS
GaAs MMIC Double Balanced Mixer
CL: 7 dB L-R Isolation: 51 dB
6 - 26.5 GHz
MM1-0626SS
GaAs MMIC Double Balanced Mixer
CL: 7.5 dB L-R Isolation: 47 dB
1.5 - 13 GHz
MT3L-0113HS
GaAs MMIC High Dynamic Range Mixer
CL: 8.5 dB L-R Isolation: 43 dB

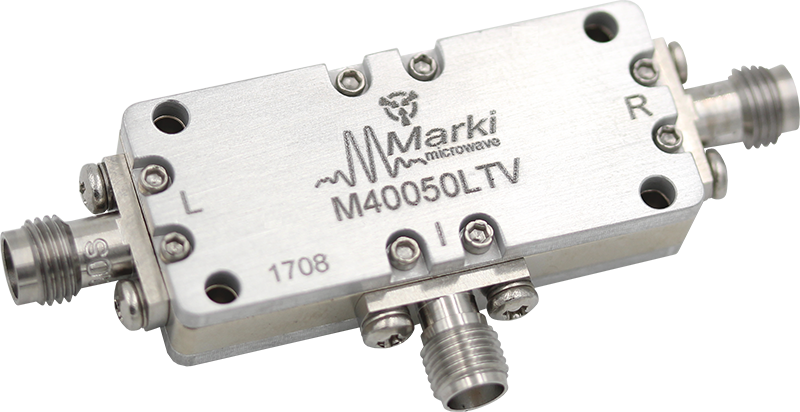

0.5 - 50 GHz
M4-0050LTV
Double-Balanced Mixers
CL: 9 dB L-R Isolation: 27 dB
0.5 - 40 GHz
M4-0040LJV
Double-Balanced 0.5 - 40 Mixer
CL: 7 dB L-R Isolation: 30 dB
0.01 - 20 GHz
T3-20GLS
Two-Tone-Terminator Mixer
CL: 7.5 dB L-R Isolation: 25 dB
7 - 26.5 GHz
M1R-0726LS
Double-Balanced Mixers
CL: 6 dB L-R Isolation: 38 dB
3 - 30 GHz
MM1-0330HS
GaAs MMIC Double Balanced Mixer
CL: 7 dB L-R Isolation: 49 dB
2 - 12 GHz
MM1-0212SS
GaAs MMIC Double Balanced Mixer
CL: 8.5 dB L-R Isolation: 47 dB

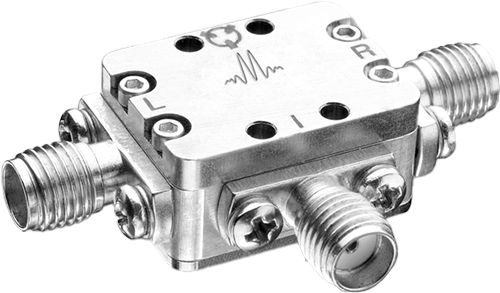

3 - 10 GHz
M1-0310LP
High Isolation Double-Balanced Mixers
Splitting: 1:2
CL: 6 dB L-R Isolation: 40 dB
12 - 40 GHz
MM1-1240SS
GaAs Double-Balanced Mixer
CL: 8 dB L-R Isolation: 43 dB
11 - 40 GHz
MM1-1140HS
GaAs Double-Balanced Mixer
CL: 8 dB L-R Isolation: 47 dB
2 - 22 GHz
MM1-0222HS
GaAs MMIC Double Balanced Mixer
CL: 7 dB L-R Isolation: 51 dB
1 - 40 GHz

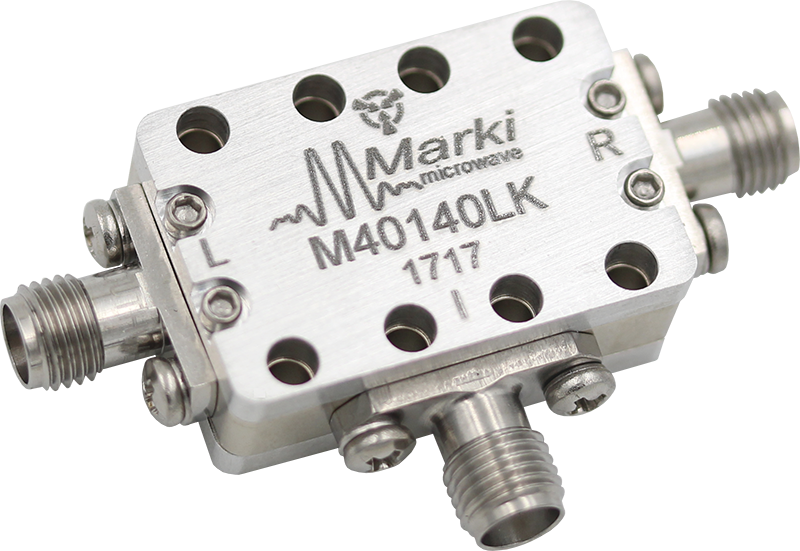

M4-0140LK
Double-Balanced 1 - 40 GHz Mixers
CL: 9.5 dB L-R Isolation: 30 dB
9 - 42 GHz

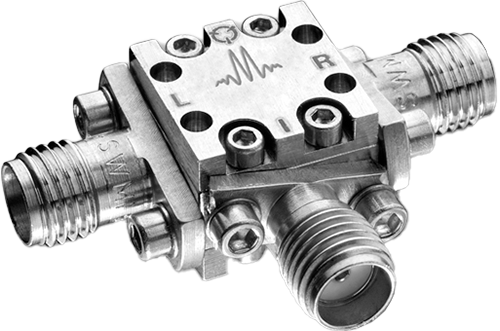

M9-0942LNV
Double-Balanced Mixers
CL: 9 dB L-R Isolation: 28 dB
3 - 30 GHz
MM1-0330TS
GaAs MMIC Double Balanced Mixer
CL: 7 dB L-R Isolation: 50 dB
8 - 38 GHz
T3-0838GLN
High-Linearity Triple-Balanced Mixers
CL: 8 dB L-R Isolation: 31 dB
10 - 44 GHz
MM1-1044HS
GaAs MMIC Double Balanced Mixer
CL: 7.6 dB L-R Isolation: 47 dB
14 - 67 GHz
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
CL: 7 dB L-R Isolation: 53 dB
18 - 50 GHz

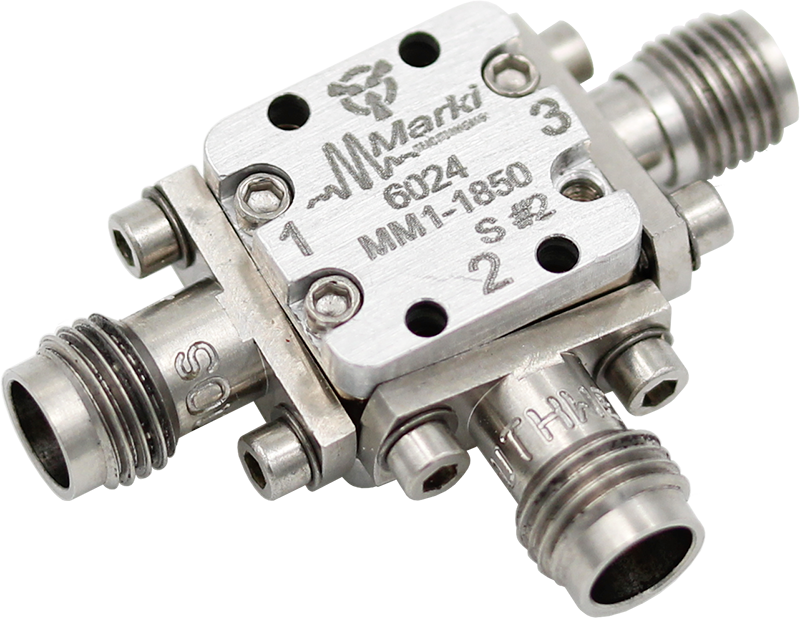

MM1-1850SS
GaAs DOUBLE-BALANCED MIXER
CL: 8.5 dB L-R Isolation: 43 dB
2 - 26.5 GHz
M2-0226MP
Triple-Balanced Mixers
CL: 7.5 dB L-R Isolation: 28 dB
0.01 - 18 GHz
T3H-18GIS
Two-Tone-Terminator .01 - 18 GHz Mixer
CL: 9.5 dB L-R Isolation: 30 dB
0.01 - 7 GHz
T3A-07PA
Two-Tone-Terminator Mixer/LO-Amplifier
CL: 6.5 dB L-R Isolation: - dB
