Connectorized pulse inverters use magnetic and capacitive coupling to create a negative version of a voltage signal, introducing a broadband 180˚ phase shift in the frequency domain and maintaining a flat group delay for signal integrity.
0.001 - 65 GHz

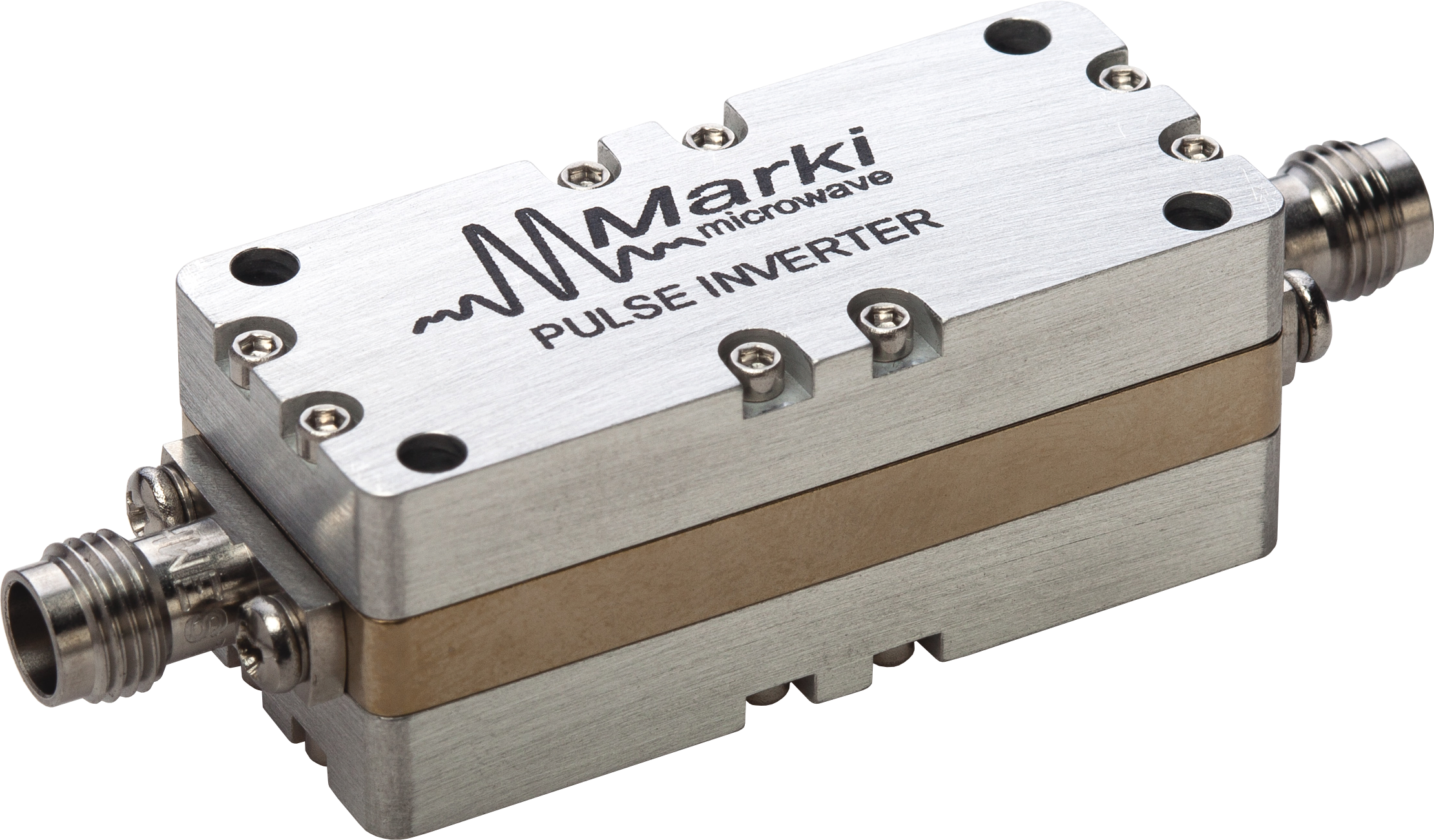

INV-0065
BROADBAND PULSE INVERTER (1 MHz to 65 GHz)
Insertion Loss: 1.2 dB Rise/Fall Time: 12 ps
0.001 - 26.5 GHz
INV-0026
Broadband Pulse Inverter (1 MHz to 26.5 GHz)
Insertion Loss: 1.2 dB Rise/Fall Time: 13 ps
0.001 - 40 GHz
INV-0040
BROADBAND PULSE INVERTER (1 MHz to 40 GHz)
Insertion Loss: 1.2 dB Rise/Fall Time: 13 ps
