- Broadband Baluns use magnetic material to extend their operating range below 1 GHz. Common applications include broadband interfaces for Analog to Digital and Digital to Analog converters that require full band frequency coverage
- Banded Baluns use a planar circuit construction to cover frequencies starting above 1 GHz. They are more repeatable and available in smaller packages (including MMICs) vs broadband baluns that require magnetic materials
Marki Microwave baluns offer the best phase balance, amplitude balance, and common mode rejection over the widest bandwidths of any product commercially available. Commonly used to interface to analog-to-digital converters and digital-to-analog converters, used in large-element phased arrays, and in differential cable test sets, these baluns use a unique architecture combined with sophisticated and proprietary assembly techniques.
Click here to view subfamily information.
0.1 - 40 GHz
EBAL-0040
10 MHz to 40 GHz Broadband Balun
Impedance Ratio: 2:1 Insertion Loss: 3 dB CMRR: 38 dB
0.01 - 67 GHz
EBAL-0067
10 MHz to 67 GHz Broadband Balun
Impedance Ratio: 2:1 Insertion Loss: 4 dB CMRR: 42 dB
0.01 - 50 GHz
EBAL-0050
10 MHz to 50 GHz Broadband Balun
Impedance Ratio: 2:1 Insertion Loss: 4 dB CMRR: 33 dB
0.01 - 26 GHz
EBAL-0026

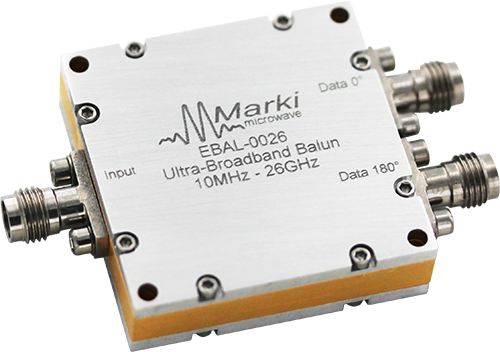

10 MHz to 26 GHz Broadband Balun
Impedance Ratio: 2:1 Insertion Loss: 3 dB CMRR: 31 dB
0.0002 - 10 GHz
BAL-0010

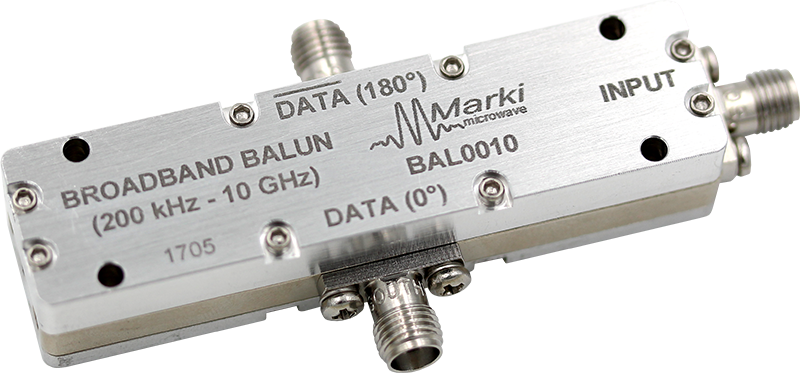

BROADBAND BALUN
Impedance Ratio: 2:1 Insertion Loss: 5 dB CMRR: 35 dB
0.0003 - 36 GHz
BAL-0036

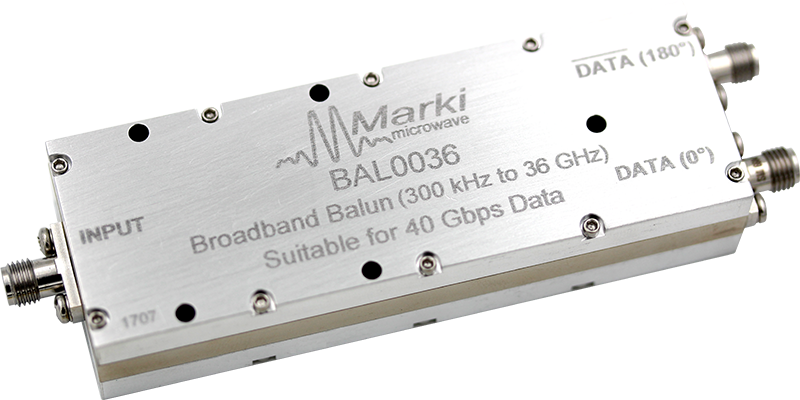

Broadband Isolation Balun (300KHz to 36GHz)
Impedance Ratio: 2:1 Insertion Loss: 3 dB CMRR: 30 dB
0.0003 - 67 GHz
BAL-0067

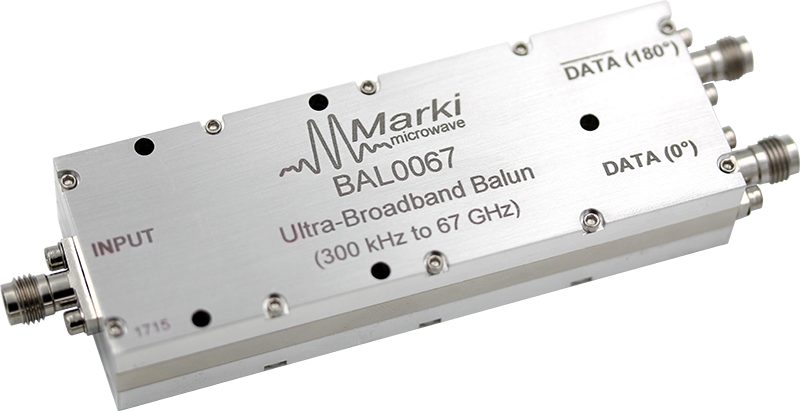

Broadband Isolation Balun (300KHz to 67GHz)
Impedance Ratio: 2:1 Insertion Loss: 3 dB CMRR: 27 dB
0.0003 - 26.5 GHz
BAL-0026
Broadband Isolation Balun (300KHz to 26.5GHz)
Impedance Ratio: 2:1 Insertion Loss: 2.5 dB CMRR: 30 dB
0.0003 - 50 GHz
BAL-0050

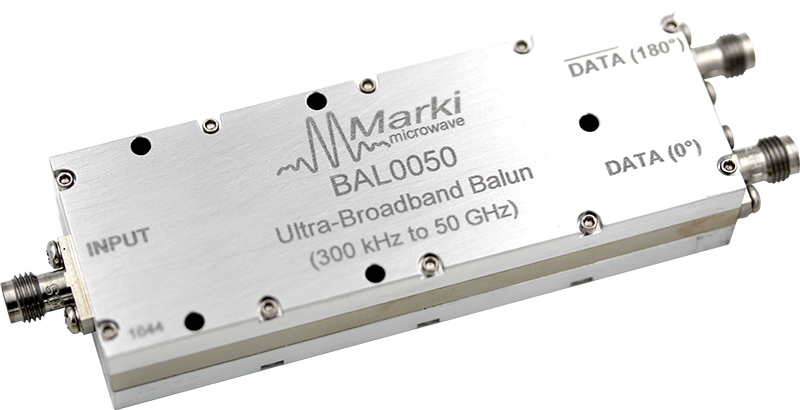

Broadband Isolation Balun (300KHz to 50 GHz)
Impedance Ratio: 2:1 Insertion Loss: 3 dB CMRR: 28 dB
0.0002 - 6 GHz
BALH-0006
HIGH POWER BALUN (200 kHz to 6 GHz)
Impedance Ratio: 1:1 Insertion Loss: 2.5 dB CMRR: 40 dB
0.0002 - 3 GHz
BALH-0003
High Power Balun (200 kHz to 3 GHz)
Impedance Ratio: 1:1 Insertion Loss: 1.5 dB CMRR: 45 dB
0.0002 - 10 GHz
BALH-0010

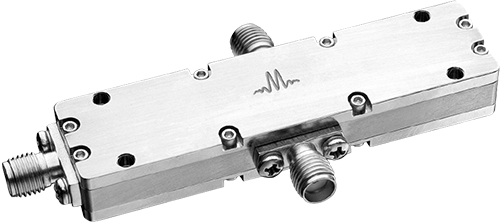

High Power Balun (200 kHz to 10 GHz)
Impedance Ratio: 1:1 Insertion Loss: 2.5 dB CMRR: 35 dB
0.0002 - 3 GHz
BAL-0003

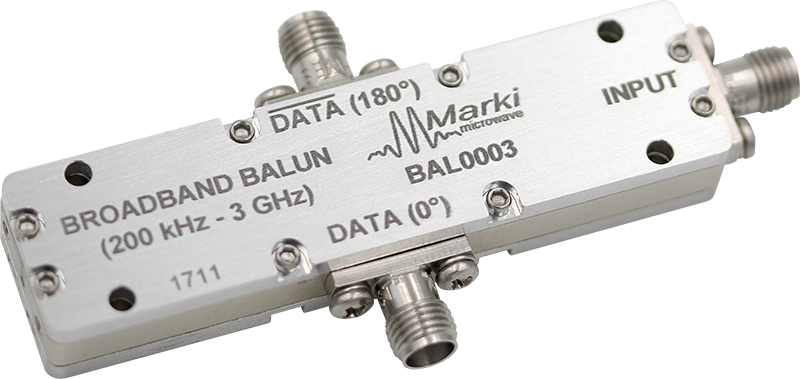

BROADBAND BALUN (200 kHz to 3 GHz)
Impedance Ratio: 2:1 Insertion Loss: 4 dB CMRR: 45 dB
5 - 20 GHz
BAL-0520
5-20 GHz Balun
Impedance Ratio: 2:1 Insertion Loss: 1.5 dB CMRR: 30 dB
0.0002 - 6 GHz
BAL-0006
BROADBAND BALUN (200 kHz to 6 GHz)
Impedance Ratio: 2:1 Insertion Loss: 4.5 dB CMRR: 40 dB
2.6 - 12 GHz
BAL-0212
BALUN
Impedance Ratio: 2:1 Insertion Loss: 1 dB CMRR: 35 dB
1.2 - 6 GHz
BAL-0106
BALUN
Impedance Ratio: 2:1 Insertion Loss: 0.6 dB CMRR: 38 dB
